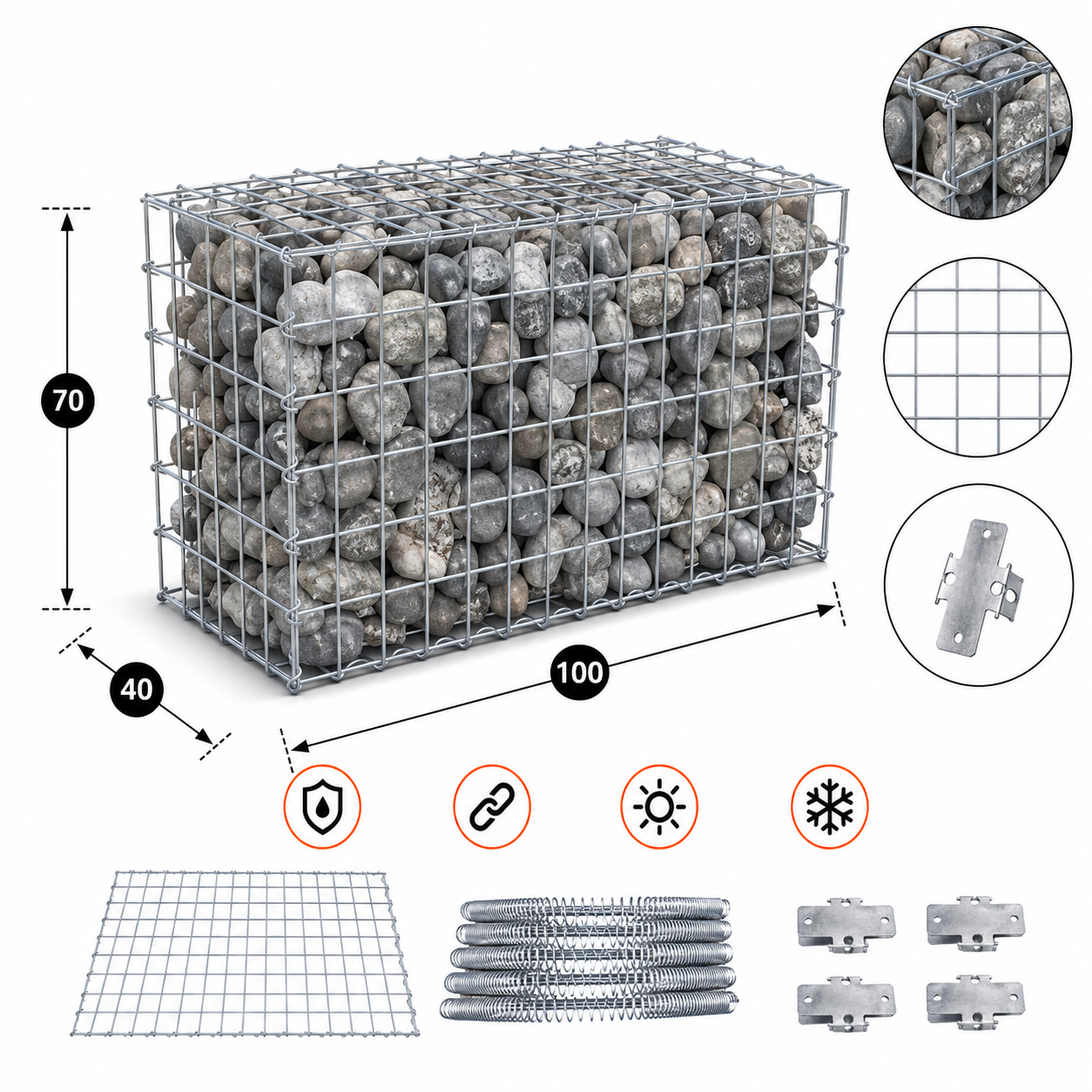

Kuvido Gabione 100 cm x 70 cm x 40 cm (L x H x T), Maschenweite 5 x 10 cm, Spiralring

Technical details:

• Dimensions:
  • Length: 100 cm
  • Height: 70 cm
  • Depth: 40 cm
• Mesh size: 5 x 10 cm (perfect for even filling with stones)
• Wire diameter: 4 mm
• Material coating: Galvanized (zinc-aluminium, min. 350 g/m²), offers optimal protection against corrosion and weathering.
• Steinbedarf: ca. 460 kg
• Resilience:
  • Shear strength of the weld points: > 3.5 kN – ensures high stability and strength at the connection points.
  • Tensile strength of the wire: > 500 N/mm² – ensures that the wire remains dimensionally stable even under high loads.
• Corrosion protection:
  • Tested according to DIN EN ISO 9227 (salt spray test): Over 3,000 hours of resistance to rust, ideal for long-term outdoor use.

Advantages:

• High corrosion protection: The galvanized zinc-aluminum coating reliably protects against weathering and extends the service life of the gabion.
• Easy assembly: Thanks to the spiral rings, the gabion can be assembled quickly and safely.
• Robust and stable: With a wire diameter of 4 mm and high load-bearing capacity, this gabion is also suitable for heavy fillings.

Scope of delivery:

• 6 mesh mats,
  spiral rings for connecting the mesh,
  spacers (prevent bulging of the mesh)
